Lecture 7: Omics

class: center, middle, inverse, title-slide

.title[
# Lecture 7: Omics
]
.subtitle[
## BE_22 Bioinformatics SS 21
]
.author[
### January Weiner
]
.date[
### 2024-06-03
]

---

## Omics✪

genome – genomics, transcriptome – transcriptomics, proteome – proteomics,
metabolome – metabolomics, metagenome – metagenomics

symbiome, nutrimetabonomics, morphome, CircadiOmics, consciousome,
interactomics, vaccinomics, regulomics, glycomics, interactomics...

Eisenomics (sequencing of genomes named after Gustav Eisen)¹ – https://eisenomics.wordpress.com/

.myfootnote[
¹ launched on April 1st, 2012
]

---

## Ridiculome

.pull-left[
"As the -ome names imply, we expect such data to be complete collections of
components and/or properties. The problem is that they are neither complete
nor correct. It has been argued that they often do not help understanding,
and have occasionally been called the 'ridiculome'."
]

.pull-right[

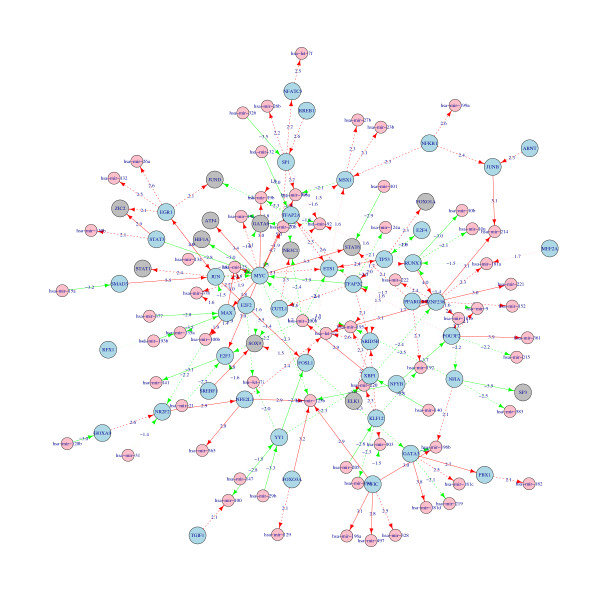

So, what exactly does the following figure tell us:

![](images/network.jpg)

*Yu, Hui, et al. "Combinatorial network of transcriptional regulation and
microRNA regulation in human cancer." BMC systems biology 6.1 (2012):
1-11.*

]

.myfootnote[
Blinov, Michael L., and Ion I. Moraru. "Logic modeling and the ridiculome under the rug." BMC biology 10.1 (2012): 1-8.
]

---
class:empty-slide,myinverse
background-image:url(images/arnolfini.jpg)

.right[
.invminifootnote[
Jan Van Eyck, Arnolfini portrait, 1434
]
]

???

Jan Van Eyck, Arnolfini portrait, 1434

---
class:empty-slide,myinverse
background-image:url(images/arnolfini_2.jpg)

---
class:empty-slide,myinverse
background-image:url(images/arnolfini_3a.png)

---
class:empty-slide,myinverse
background-image:url(images/arnolfini_3.png)

---
class:empty-slide,myinverse
background-image:url(images/arnolfini_4.jpg)

---
class:empty-slide,myinverse
background-image:url(images/monet_4.jpg)

---
class:empty-slide,myinverse
background-image:url(images/monet_3.jpg)

---
class:empty-slide,myinverse
background-image:url(images/monet_2.jpg)

---
class:empty-slide,myinverse
background-image:url(images/monet.jpg)

.right[
.invminifootnote[
<span style="color:#999999">
Claude Monet, Saint-Georges majeur au crépuscule, 1908
</span>
]
]

???

Claude Monet, Saint-Georges majeur au crépuscule, 1908

---
class:empty-slide,myinverse
background-image:url(images/sangiorgio.jpg)

---
class:empty-slide,myinverse
background-image:url(images/monet_all.png)

---

## Common characteristics of high throughput data sets✪

* a lot more variables than samples, `$p >> n$`
  * many unknown / uncharacterized variables
  * atypical distributions
  * frequently:
      * batch effects
      * systematic bias
      * relative data (as opposed to absolute measurements in SI units)
      * large uncertainties for individual data points
      * huge files

---

---

## Genomics

* Study of genomes (also: metagenomics `$\sim$` comparative genomics)
 * Broader: any gene-related omics, including approaches combining several
   -omics

---

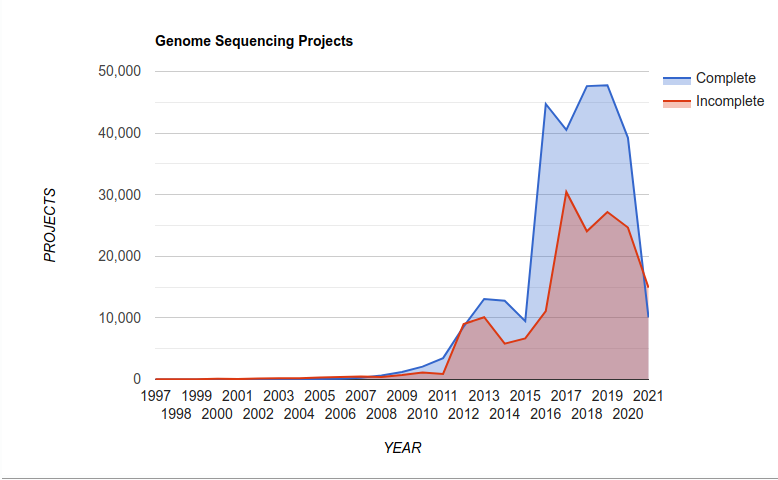

## Genomics: science of genomes

.pull-left[
Techniques:

* High throughput sequencing
 * SNP arrays

Bioinformatics:

* Sequence assembly
 * Annotation (sequence searches)
 * Phylogenomics
 * Functional predictions (binding sites, homologies etc)
 * Variant analysis
 * Genome-wide association studies
]

.pull-right[

![](images/gold.png)

]

---

# Sequencing

---

.pull-left[

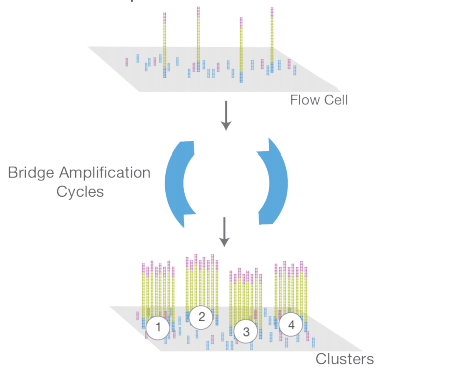

### Cluster amplification

* ligation of the cDNA to the flowcell
 * amplification in situ
 * results in spots ("clusters") with homogenous DNA

]

.pull-right[

![](images/illumina_2.png)

]

---

.pull-left[

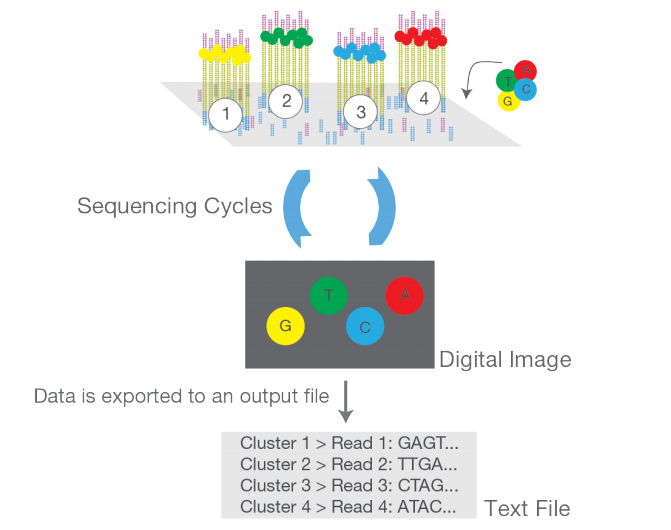

### Sequencing

* "Sequencing by synthesis": Step-wise extension of the sequences
 * in each cycle, only one nucleotide is added: a protective group (-OH)
   does not allow incorporation of another nucleotide
 * a snapshot of the flow cell is taken; each cluster appears as a dot, the
   color corresponds to the last dNTP incorporated
 * fluorescence is deactivated, -OH protective group removed and another
   cycle begins

]

.pull-right[

![](images/illumina_3.png)

]

---

.pull-left[

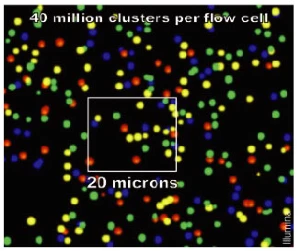

### Sequencing

]

.pull-right[

![](images/illumina.webp)

]

---

.pull-left[

### Sequencing

]

.pull-right[

![](images/illumina.webp)

]

---

.pull-left[

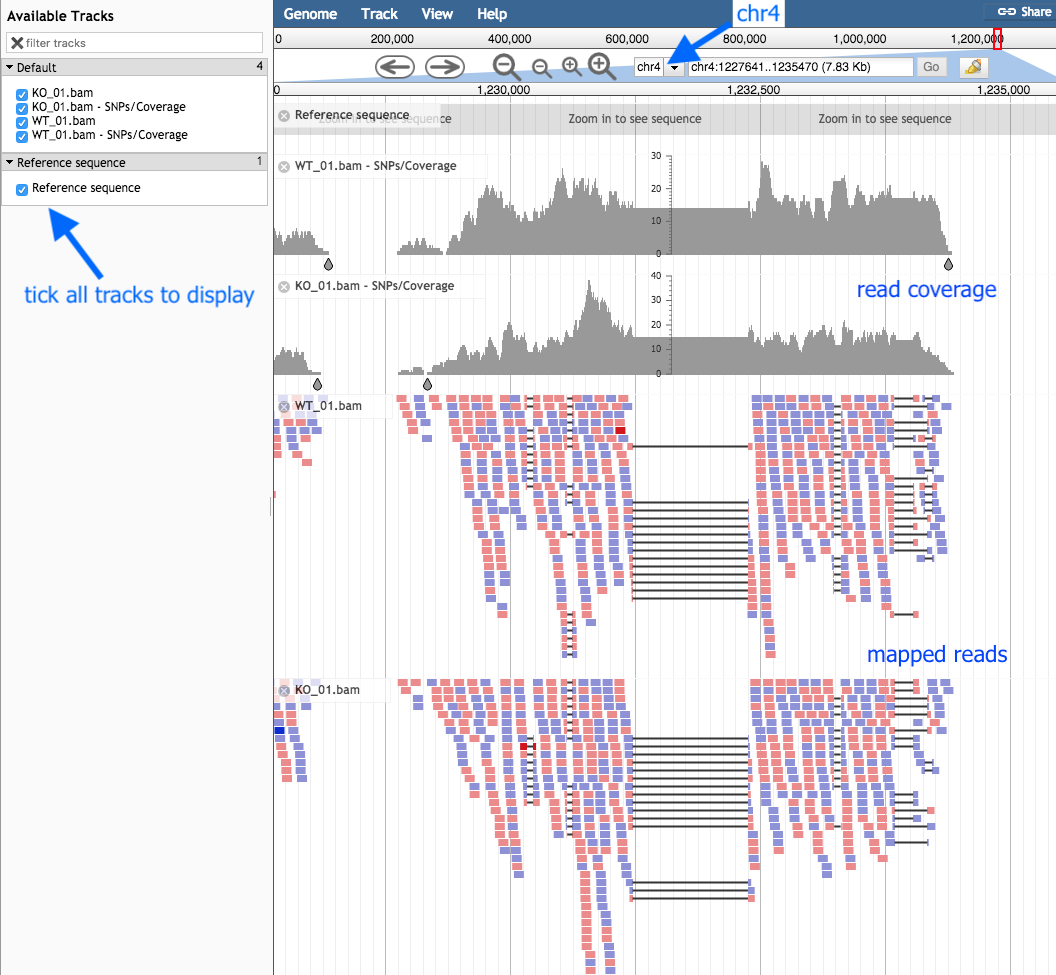

### Bioinformatics

* convert image data to (compressed) text files (fastq files)
 * demultiplex: split sequences based on the index
 * trim adapters
 * align to a genome / exome (SAM/BAM files)
 * using a gene model (GTF files) count reads per gene
 * Quality Control

]

.pull-right[

![](images/alignment.png)

]

---

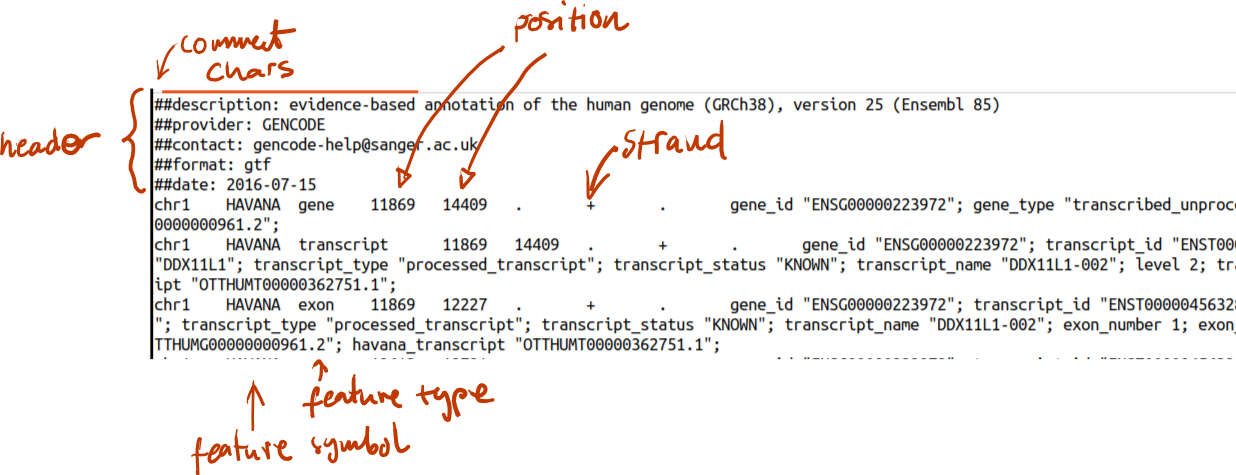

## Annotation & GTF files

![](images/gtf.png)

* GTF files: Gene Transfer Format
 * contain information about gene models
 * e.g. chromosome, start, end, strand, gene name, transcript name, exon
   number, exon start, exon end

---

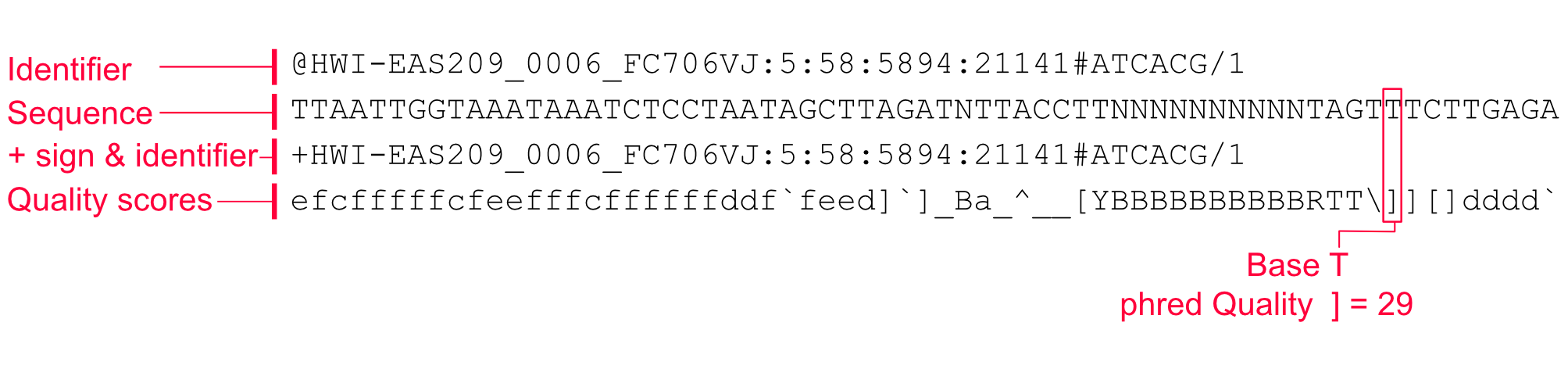

## FASTQ files✪

![](images/fastq.png)

Lines:

1. Identifier
 2. Sequence of the read
 3. End of the sequence (`+`), optionally identifier again
 4. Phred quality score

---

## Phred quality score✪

`$$Q \stackrel{\text{def}}{=} -10 \cdot \log_{10}P$$`

So if `$Q = 10$`, then error probability is 1 in 10 (one zero); if `$Q = 50$`, error
probability is 1 in `$100,000$` (five zeros).

The `$P$` (probability) is derived empirically from the signal / noise ratio
(and other metrics) in the raw data.

The number is then mapped on ASCII codes of characters, e.g. `A` has the
code of 65, which corresponds to `$Q = 65 - 33 = 32$`; `]` has the ASCII code
93, so `$Q = 93 - 33 = 60$`.

---

## SAM and BAM files✪

![](images/bam.png)

* contain information about alignment
 * SAM = human readable text format (huge), BAM = same data but binary for
   smaller size and quicker access

---

## Long read sequencing

Short reads: 50-300 bp (Illumina), 300-600 bp (Ion Torrent). Problems:

* repetitive regions (long terminal repeats - LTRs; retrotransposons; LINE
   elements - long interspersed nuclear elements)
 * structural variants (e.g. inversions, translocations, duplications)

Long read sequencing:

* Methods:
   * PacBio: 10,000-100,000 bp
   * Oxford Nanopore, 10,000-1,000,000 bp

 * Problems of long read sequencing:
   * high error rate (but some methods / newest chemistry have much higher accuracy,
     e.g. PacBio HiFi or newest chemistry from Oxford Nanopore)
   * high cost
   * low throughput

---

## Long read sequencing:PacBio

.pull-left[
PacBio: DNA polymerase with attached fluorescent nucleotides
  * a single molecule of DNA polymerase is immobilized on a surface in a "nanophotonic well"
  * DNA is added to the surface
  * DNA polymerase incorporates fluorescent nucleotides
  * fluorescence is detected in real time
  * fluorescence is deactivated
  * DNA polymerase incorporates another nucleotide
  * repeat
]

.pull-right[
![](images/pacbio.png)
]

---

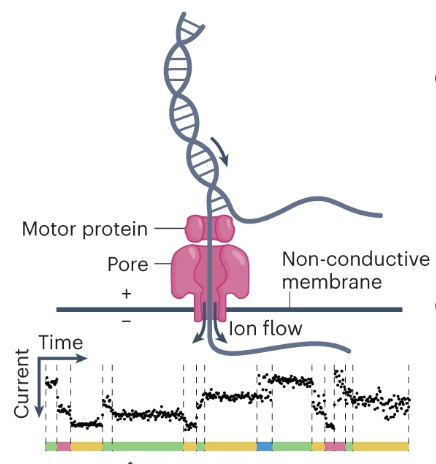

## Long read sequencing: Oxford Nanopore

.pull-left[
Oxford Nanopore:
  * DNA is pulled through a nanopore
  * the current is measured
  * the current changes depending on the nucleotide
  * repeat
]

.pull-right[

![](images/nanopore.png)

]

---

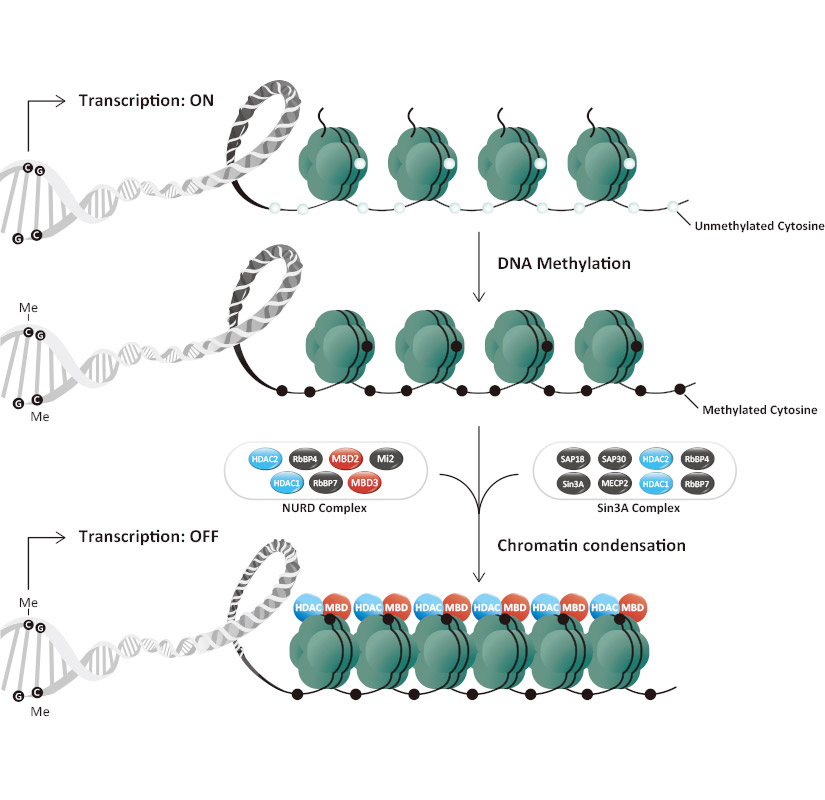

## DNA methylation

.pull-left[
Techniques:

* bisulfite sequencing
 * pyrosequencing
 * methylation arrays

Bioinformatics:

* Differential methylation analysis
]

.pull-right[

![](images/methylation.jpg)

]

---

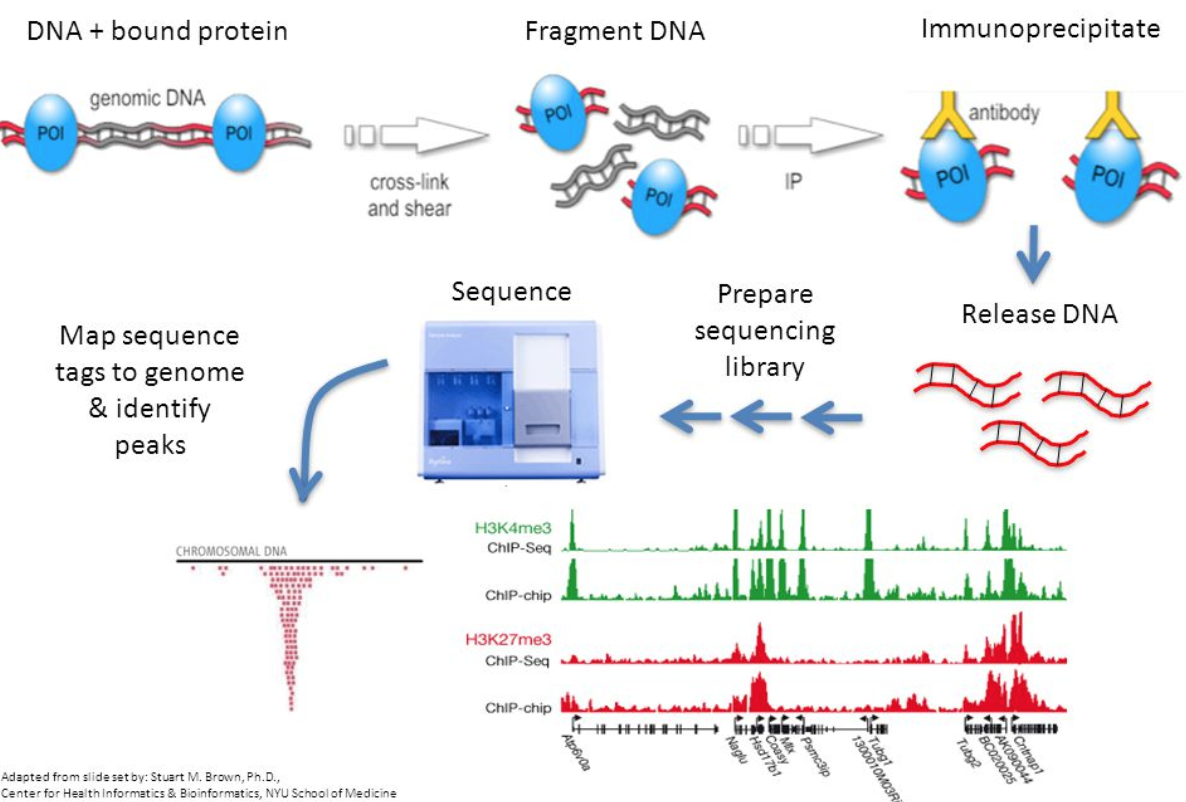

## DNA binding

.pull-left[

Techniques:

* ChIP (-on-chip, -Seq)
 * ATAC (-Seq)

Bioinformatics:

* Peak identification
 * Differential binding
 * Motif prediction and motif search

]

.pull-right[

![](images/chipseq.jpg)
]

---

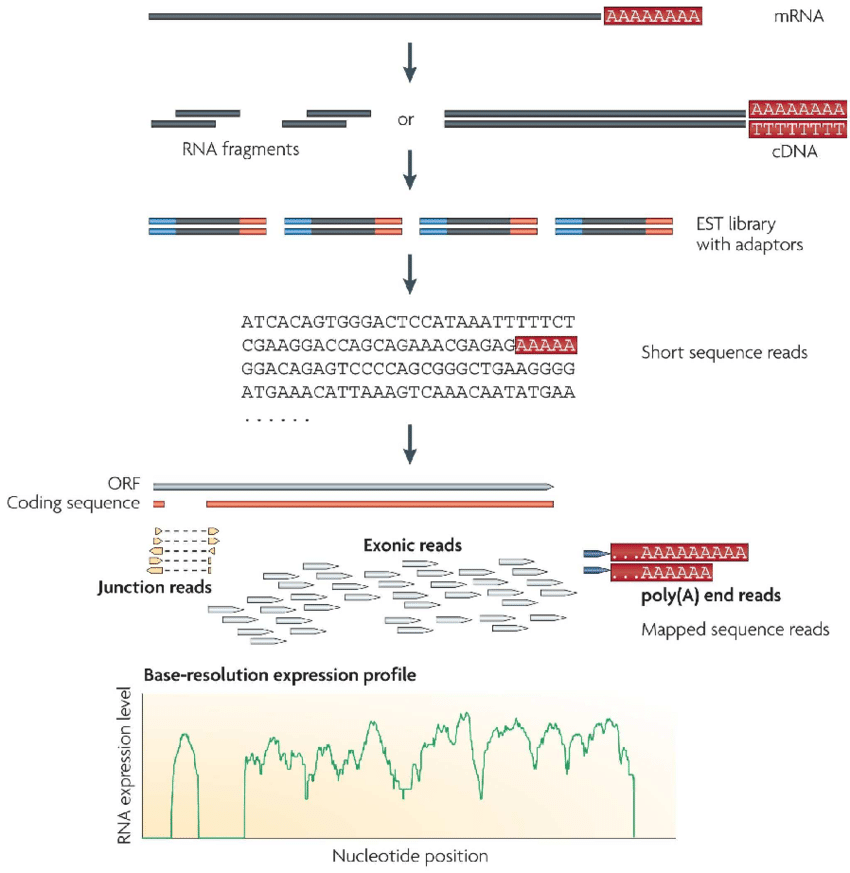

## Transcriptomics

.pull-left[

Techniques:

* RNA-Seq (2nd generation sequencing)
 * Microarrays
 * Nanostring
 * QPCR

Bioinformatics:

* Multivariate analyses (PCA etc)
 * Differential expression analysis (statistics)
 * Gene clustering
 * Functional analysis (gene enrichments – finding regulated pathways)
 * Differential transcripts

]

.pull-right[

![](images/rnaseq.png)

]

---

## Transcriptomic methods

* QPCR: precise, low-throughput
 * Nanostring: precise, mid-throughput (~ 500-1000 genes)
 * Microarray: less exact, high-throughput, pre-defined genes
 * RNA-Seq: very flexible, less exact, high-throughput

---

## Transcriptomic parameters

(serves as an example of the complexity of each method)

* Experimental design: number of samples needed? Which groups of samples?
   Which controls?
 * paired end or single end?
 * library size / read depth? (number of reads per sample: 5 millions, 10
   millions, 20 millions?)
 * library preparation:
    * globin depletion?
    * amplification?
    * UMI barcodes? (unique molecular identifiers)

---

## RNA-Seq

.pull-left[
### Library preparation

* cDNA synthesis (for RNA-Seq)
 * fragmentation
 * ligation of adapter and index sequences (and possibly UMIs, universal
   molecular identifiers)
 * purification (e.g. removing globin sequences)
 * amplification
   ]

.pull-right[

![](images/illumina_1.jpg)

]

---

## Count data

* Matrix with integer data
 * Rows = genes (or transcripts)
 * Columns = samples

---

## Alternative representations of count data

Library size = total number of reads in a sample

* (log) counts per million (normalized to library size)
 * RPKM: reads per kilobase of transcript per million reads (normalized to
   transcript length and library size)
 * FPKM: fragments per kilobase of transcript per million reads (normalized
   to transcript length and library size)
 * TPMs: Transcript Per Million, normalized to transcript length and
   library size (but differently)

---

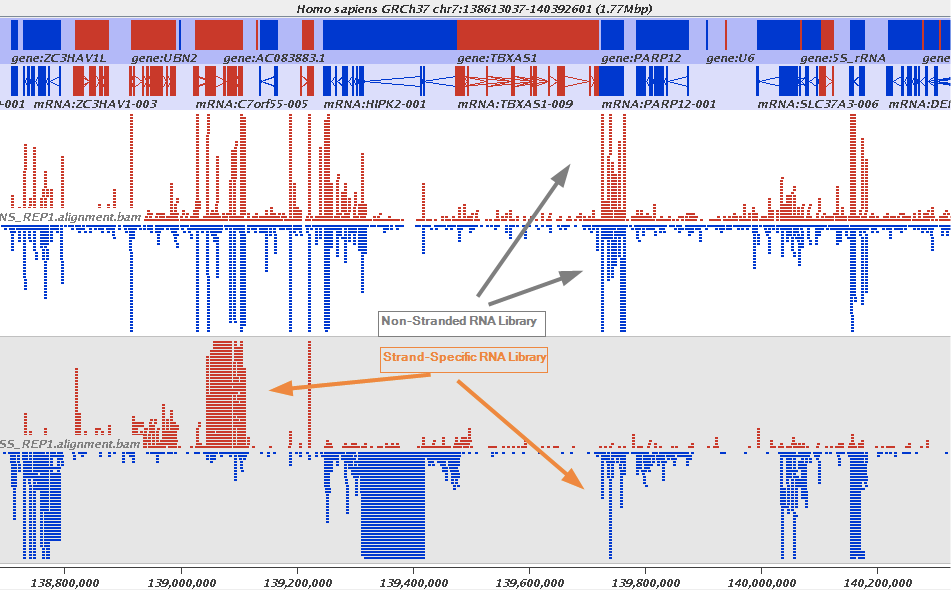

## Stranded vs non-stranded

![:scale 80%](images/strand_specificity.png)

---

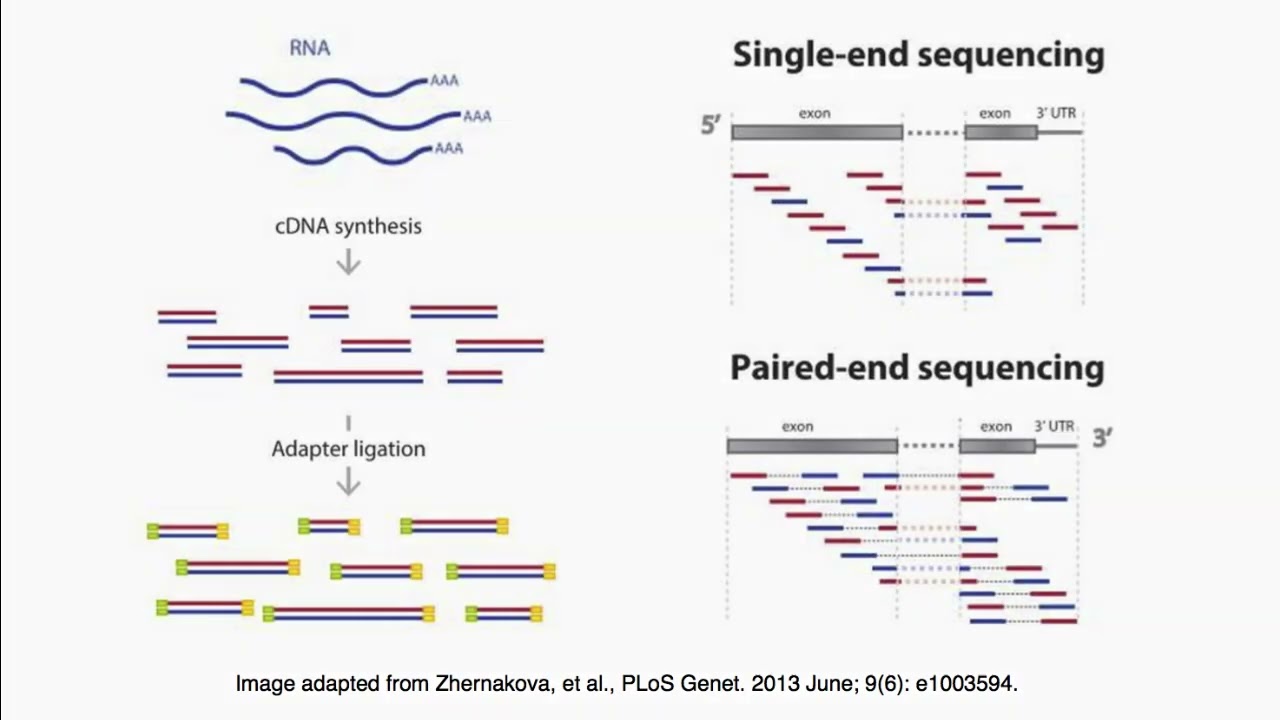

## Paired end vs single-end

![](images/paired_vs_single.jpg)

---

## Proteomics

.pull-left[

Techniques:

* mass spectrometry
    * separation: chromatography
    * ionization: MALDI / ESI
    * analysis:
       * time of flight (TOF, e.g, MALDI-TOF)
       * Ion trap (e.g. Orbitrap)
       * quadrupole (mass filter)
    * tandem MS (MS/MS)

Bioinformatics:

* spectrum analysis
    * protein identification
 * protein quantification, differential abundance etc.
 * functional analysis
 * protein-protein interaction networks

]

.pull-right[

]

---

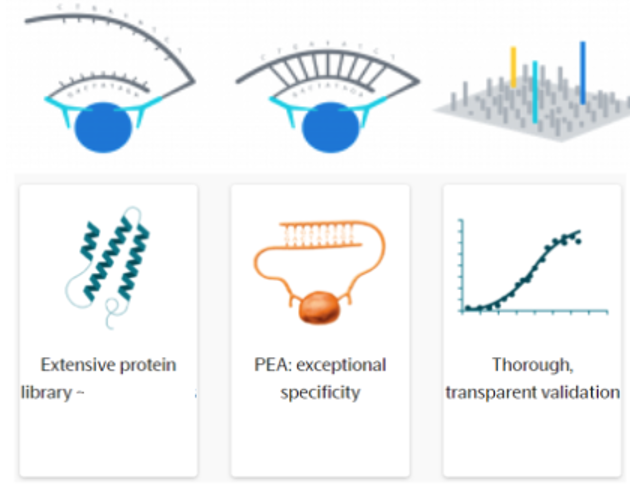

## Targeted proteomics

.pull-left[
e.g. antibody-based methods

* Luminex (antibodies coupled to fluorescent beads, measurement via a
   specialized instrument)
 * OLINK (proximity extension assay: antibodies coupled to DNA oligos,
   measurement via qPCR)
]

.pull-right[

![](images/olink.png)

]

---

## Others

.pull-left[

* Phosphoproteomics:

* phosphorylation of proteins
    * radioisotpes for detection

* Glycoproteomics:
   * identification of glycosylated proteins and other glycosylated
     molecules
   * cell-cell interactions
   * immune responses (glycosylation of immunoglobulins)

]

.pull-right[
 * Lipidomics
    * Mass spectrometry

* Metabolomics
    * Mass spectrometry

]

---

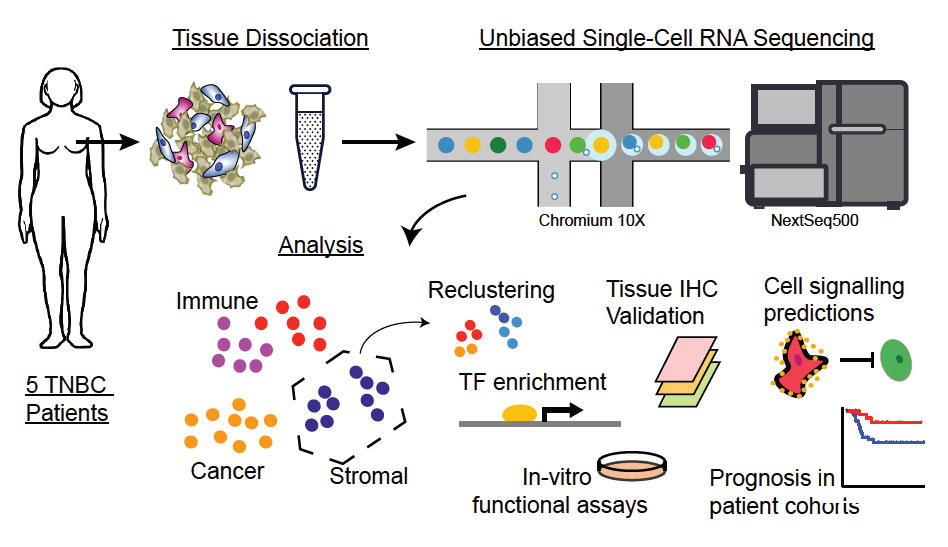

## Single cell methods

.pull-left[

e.g. sc-RNA-Seq

* each cell uniquely labelled
 * sequencing reaction separated (e.g. in nanodroplets)
 * transcriptome of each cell (but with low coverage)

]

.pull-right[

![](images/scrnaseq.jpg)

]

---

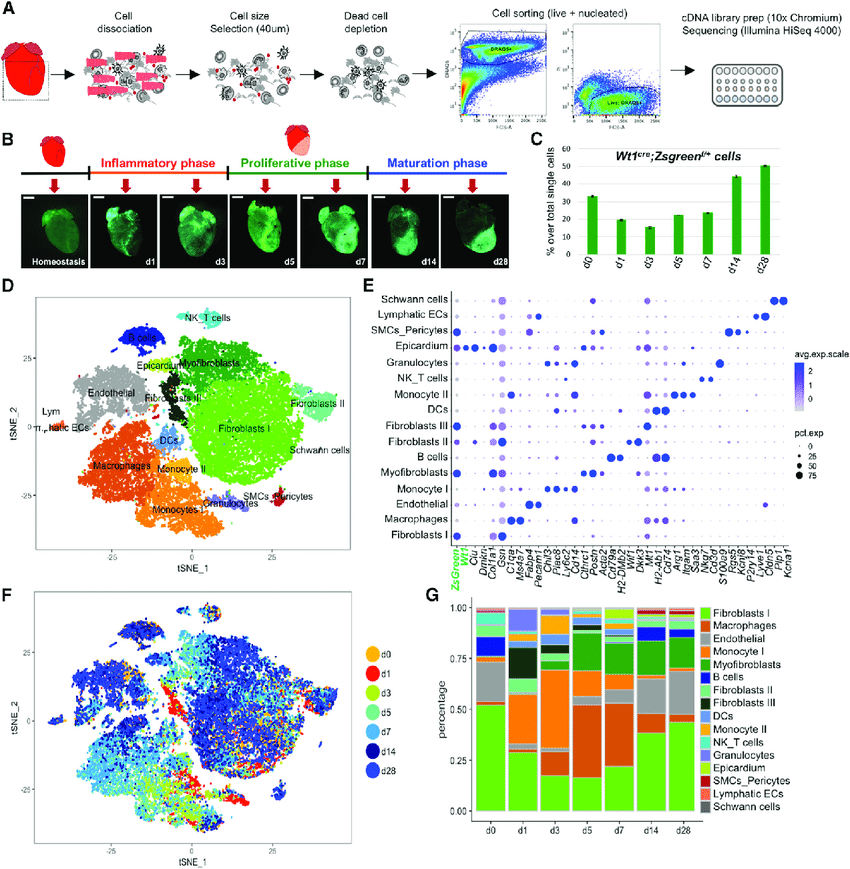

## Single cell RNA-Seq

* Data normalization: samples should fit to each other
 * Cluster identification: find clusters of cells with similar expression
   profiles
 * Cell type identification: identify cell types based on known marker
   genes, or other (prior) analyses
 * Pseudobulk analysis:
  * Split data by clusters
  * For each cluster and sample, generate a "pseudobulk" sample, i.e. add
    the expression of all cells
  * Perform a differential expression analysis on the pseudobulk samples

---

![](images/single_cell.png)

???

Source: Dynamic Interstitial Cell Response during Myocardial Infarction
Predicts Resilience to Rupture in Genetically Diverse Mice, Cell Reports
2020

---

## Flow cytometry

.pull-left[

* cells labelled with fluorescent antibodies
 * cells pass through a laser beam
 * fluorescence is detected
 * cells are sorted based on fluorescence
 * cells are collected in tubes
 * cells are analysed by other methods (e.g. RNA-Seq)

]

.pull-right[

![](images/flow_cytometry.jpg)

]

---

## Is it all worth it?

![](images/zappaquote.png)

(after Graur et al.)

---

## Example: ENCODE

* ENCODE = Encyclopedia of DNA Elements
 * Goal: identify all functional elements in the human genome
 * Data: ChIP-Seq, RNA-Seq, DNase-Seq, ATAC-Seq, Hi-C, CAGE, RAMPAGE, etc.

Some claims:

* 80% of the genome is functional (as defined by "some protein seems to
   sometimes bind to it") -> is it possible?

---

## Immortality of TV sets

* We know mutation rates, we know mathematics
 * It is not possible for natural selection to maintain 80% of the genome
   functional -> that would imply a huge fitness cost (as in,
   99.9999999999% of the population would have to die)
 * Current estimates rather at 10% of the genome being functional (in the
   evolutionary sense)
 * The fact that a protein binds a certain site doesn't mean that the site does
   anything useful

Graur, Dan, et al. "On the immortality of television sets:“function” in the
human genome according to the evolution-free gospel of ENCODE." Genome
biology and evolution 5.3 (2013): 578-590.

---

## Some advice

* New technologies and new applications arise all the time
 * New technology curve: first steeply up, then steeply down, then level out
 * In 10 years, the landscape will be very different (high throughput cheap
   single cell proteomics? spatial single cell transcriptomics?)
 * Learn the meta-trade, not the trade, so you can adapt to new
   technologies:
   * Learn how to program
   * Teach yourself to figure out how to use existing workflows
   * Stick to the reproducibility principles
